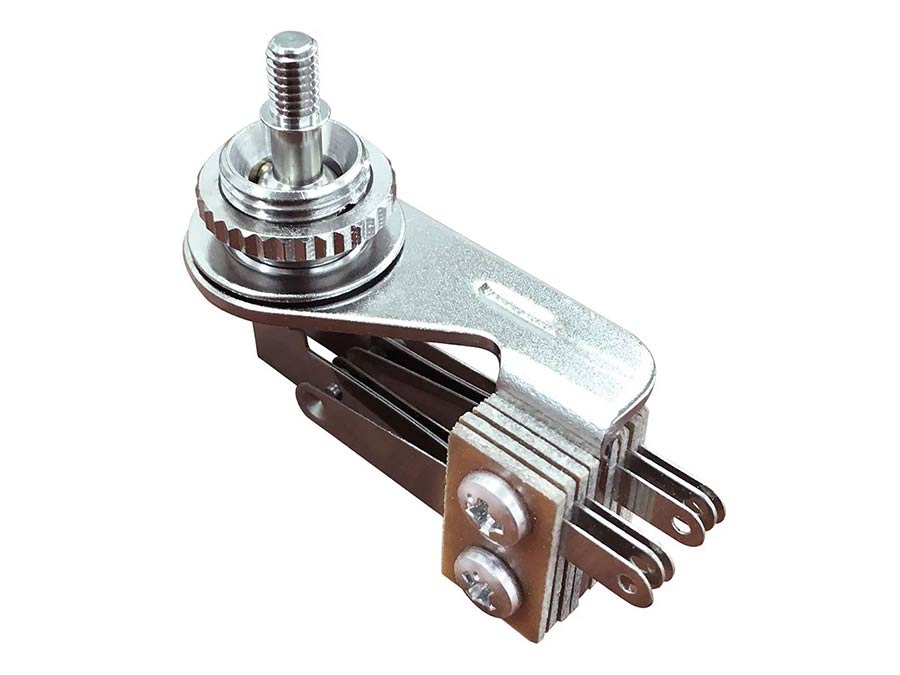

This 3-way right angle toggle switch allows for wiring of guitars with three pickups, like for example the SG Custom style guitars.

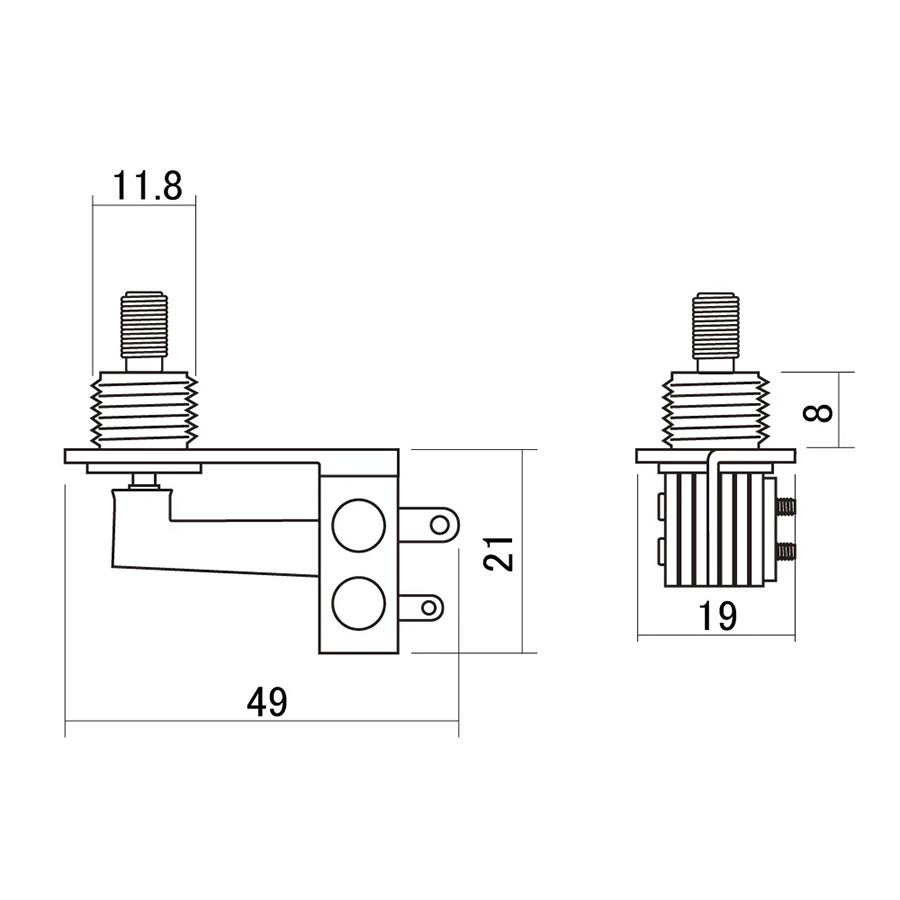

The switch has an extra set of contacts compared to standard three way toggle switches, looking from the bottom (with the contacts on the left and the lever on the right) and numbering the contacts 1 to 6 from the top down the connections are as follows, with the lever down contacts 1-2 and 4-5 are connected, in the middle position 2-3 and 4-5 are connected and with the lever up 2-3 and 5-6 are connected. The right angle frame means the switch can fit in to guitars with thinner bodies (e.g. Gibson Explorer and SG) and the switch comes with the mounting nut and washer included, a 4 mm switch tip is not included, please note this is metric threaded switch (Switchcraft parts will not fit).

• 3 way right angle toggle switch for wiring guitars with three pickups
• Extra set of contacts compared to standard three way toggle switches
• Right angle switch to suit thinner body guitars
• Knurled mounting nut included
• Switch tip not included (4 mm metric thread required)
• Made in Japan
